1 . Descriptions:
The Roots Vacuum Pump is a positive displacement vacuum pump that utilizes two symmetrically rotating impellers to facilitate gas transfer and compression within the pump chamber. By using these rotating impellers, the Roots vacuum pump generates a vacuum effect.
The specific working principle involves gas entering the pump chamber through the inlet port as the impeller rotates. The continued rotation compresses the gas between the impeller and the pump body, allowing the compressed gas to be discharged through the exhaust port, thereby creating a vacuum.
This vacuum pump is just one small part of larger wastewater treatment systems and pure water treatment systems, where it plays an essential role in managing and handling gases effectively.
2 . Product parameters:
| Model Number | Caliber
mm | Speed
r/min | Suction air volume Qs (m³/min), shaft power (KW) and supporting motor power (KW) at each exhaust pressure |
| 9.8kpa | 19.6kpa | 29.4kpa | 39.2kpa | 49kpa | 58.8kpa |
| (0.1kg/cm²) | (0.2kg/cm²) | (0.3kg/cm²) | (0.4kg/cm²) | (0.5kg/cm²) | (0.6kg/cm²) |
| QS | La | Lo | QS | La | Lo | QS | La | Lo | QS | La | Lo | QS | La | Lo | QS | La | Lo |
| L52LDAT | 200A | 980 | 20.3 | 6 | 7.5 | 18.8 | 9.83 | 11 | 17.6 | 13.6 | 15 | 16.5 | 17.9 | 22 | 15.5 | 22.4 | 30 | 14.6 | 26.9 | 30 |
| 1450 | 32.6 | 8.73 | 11 | 31 | 14.6 | 18.5 | 29.8 | 19.9 | 22 | 28.7 | 26.5 | 30 | 27.7 | 33.2 | 37 | 26.8 | 39.8 | 45 |
| L53LDAT | 250A | 980 | 26.3 | 7.38 | 11 | 24.6 | 12.4 | 15 | 23.2 | 17.3 | 22 | 22 | 22.7 | 30 | 20.9 | 28.4 | 37 | 19.8 | 34.1 | 37 |
| 1450 | 41.8 | 11.1 | 15 | 40.1 | 18.4 | 22 | 38.7 | 25.5 | 30 | 37.5 | 33.6 | 37 | 36.4 | 42 | 55 | 35.4 | 50.4 | 55 |
| L62LDAT | 250A | 730 | 29.1 | 8.55 | 11 | 26.8 | 13.5 | 15 | 25 | 19.2 | 22 | 23.4 | 25.6 | 30 | | | | | | |
| 980 | 41.5 | 11.1 | 15 | 39.3 | 18.4 | 22 | 37.5 | 25.7 | 30 | 35.9 | 34.3 | 45 | 34.4 | 42.9 | 55 | 33 | 51.5 | 75 |
| 1450 | 64.9 | 16.7 | 18.5 | 62.7 | 27.6 | 30 | 60.9 | 38.1 | 45 | 59.3 | 50.8 | 55 | 57.8 | 63.5 | 75 | 56.4 | 76.2 | 90 |
| L63LDAT | 300A | 730 | 37.1 | 10.1 | 15 | 34.6 | 16.8 | 18.5 | 32.6 | 24 | 30 | 30.8 | 32 | 37 | 29.2 | 40 | 45 | 27.7 | 48 | 55 |
| 980 | 52.7 | 13.9 | 18.5 | 50.2 | 23.2 | 30 | 48.2 | 32.2 | 37 | 46.4 | 43 | 55 | 44.8 | 53.7 | 75 | 43.3 | 64.5 | 75 |
| 1450 | 82.1 | 19.4 | 22 | 79.6 | 33.3 | 37 | 77.5 | 47.7 | 55 | 75.8 | 63.6 | 75 | 74.1 | 79.5 | 90 | 72.6 | 95.4 | 110 |
| ※parameter and detail are customizable to clients' demands. |
3 . Specificities:
1. High pumping speed: It can quickly reach a high pumping speed and improve working efficiency.
2. Simple structure: mainly composed of impeller, pump body, synchronous gears, etc., simple structure, easy maintenance.
3. No oil pollution: no oil seal and lubricating oil in the working chamber, avoiding oil pollution, suitable for occasions requiring high cleanliness.
4. Stable performance: smooth running, low vibration, low noise, high reliability.
5. Strong durability: Made of high-quality materials, characterized by wear and corrosion resistance, long service life.
6. Wide range of application: it can be used in conjunction with the pre-stage pump and is suitable for various vacuum processes.
4 . Appliance:
1. Chemical industry: used for vacuum distillation, vacuum drying, vacuum filtration and other processes in chemical production.
2. Electronic industry: used in the production of semiconductor vacuum coating, vacuum packaging and other processes.
3. Food industry: used in food processing vacuum freeze drying, vacuum packaging and other processes.
4. Pharmaceutical industry: vacuum concentration, vacuum drying and other processes in the production of drugs.
5. Experimental research: vacuum experimental equipment and devices used in scientific research experiments.
6. Metallurgical industry: used in metal smelting vacuum melting, vacuum degassing and other processes.
Product Tags:
|
|

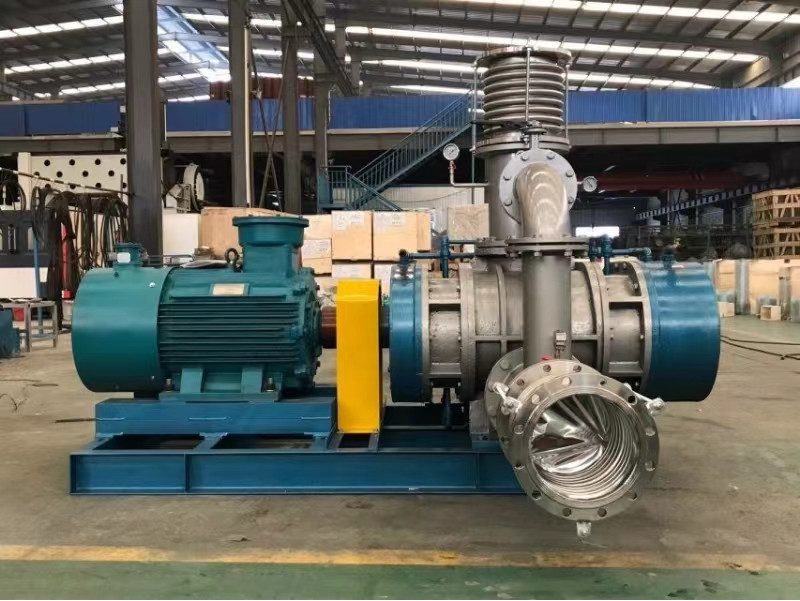

Customizable Water Treatment System - Rotz The Vacuum Pump Images
|
